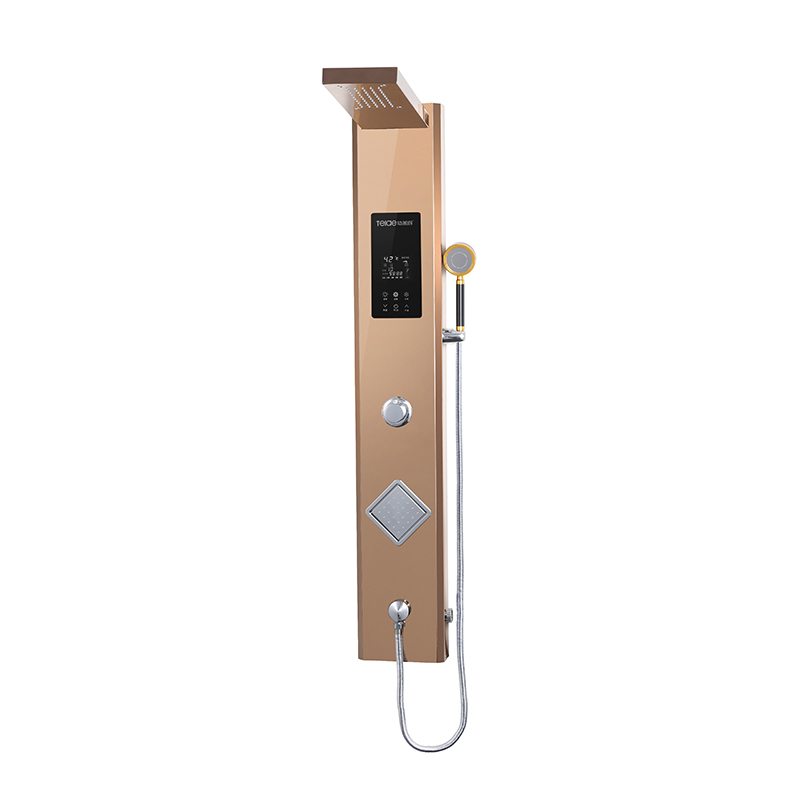

Shower Panel

TLD-Q5-85

-Intelligent thermostatic water heater + large shower multi-function as one integrated water heater
-Titanium-aluminum alloy forged heating element, scale-free heating, complete separation of water and electricity
-Built-in electronic leakage protection + Built-in inlet and outlet water physical dual circuit anti-electricity wall
-Wide voltage servo system, locking maximum power for safe use technology
-3D spiral heating, Extremely fast heating in 3 seconds, 24/7 hot water supply
-Multiple safety protections such as anti-overtemperature, anti-leakage, anti-dry burning, etc.
-LED digital dynamic color screen display, touch key switch
-Imported main control chip, Intelligent constant temperature/gear-adjustable temperature modulation dual-mode control system,
-smart learning function, frequency conversion control system with more precise temperature regulation
-Screen off function if no operation is performed for 1 minutes to save energy
-Multiple anti-debris clogging design, machine use more durable
-Pressurized structure design, hot water can be multi-way water supply function
-The product can be concealed/exposed waterway design, easy installation
-Integrated flow control adjustable design
PRODUCT DETAIL
Model Temperature control method rated power Rated voltage Rated current temperature range Rated water pressure Rated water pressure waterproof level Installation requirements Weights
TLD-Q5-85 Intelligent thermostat 8.5kW 220V~ 50Hz 39A 30~60°C 0.6MPa 1400*220*85mm IPX4 ≥6m㎡power cofd Net weight:5.27KG Gross weight: 5.98KG
